Standard Chimney Cowls

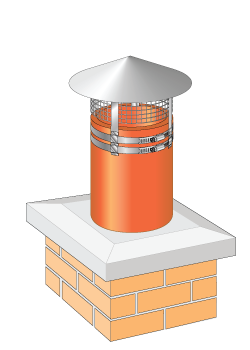

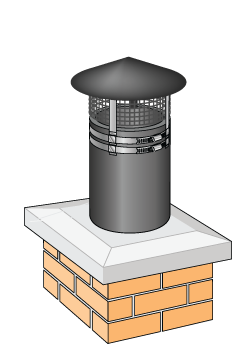

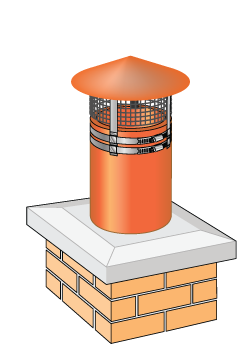

Smart Cap is suitable for most conventional clay chimney pots with an 8 inch (200mm) internal and 9^1/2 inch (240mm) external diameter. It is designed to prevent bird entry and to reduce rain ingress.

Smart Cap is available in 4 finishes which are illustrated below and is designed to be secured to the Chimney Pot with 2 S/Steel worm drive locking bands.

• Tested to and complies with BS EN 16475-7:2016
• Made from powder coated stainless steel
• Quick and simple to install
• Incorporates 2 S/Steel drive locking bands
• Fits most conventional chimney pots
• Durable construction and universal fitting
• Prevents rain and bird entry
• Attractive and lightweight design.

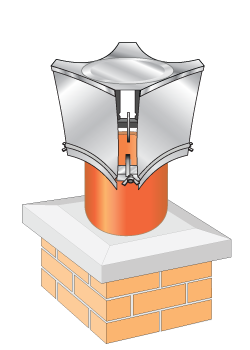

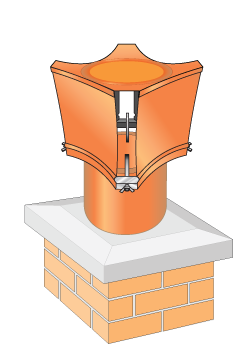

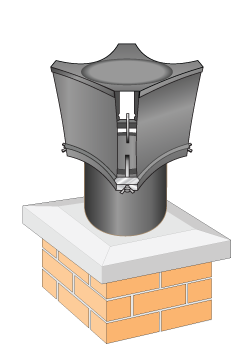

The Smart Vent (Aerodyne Brewer Cowl) prevents foreign bodies entering the chimney and is designed to increase updraught and reduce downdraught.

The closed upper surface of the terminal impedes the downward movement of wind which might otherwise create a down draught within the chimney. The curved shape of the four vertical walls behaves like an aerofoil which creates a negative pressure on the inner curved edge as wind passes over and through the terminal. This action creates a suction to increase the upward chimney draught.

• Promotes positive updraught
• Helps reduce downdraught
• Prevents foreign bodies from entering chimneys
• Fits most conventional chimney pots
• Durable construction and easy to install
• Manufactured from 1.2mm thick high grade aluminium alloy
• Suitable for use on solid fuel systems - logs, coal, peat
• Is not suitable for GAS.

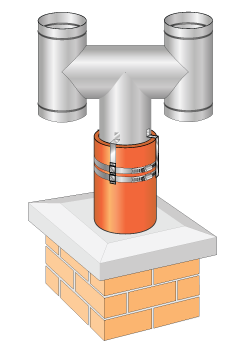

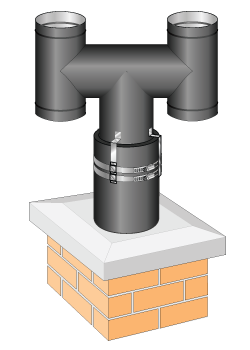

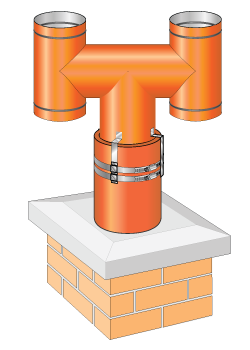

H and OH Cowls are suitable for most conventional clay chimney pots with an 8 inch (200mm) internal and 9^1/2 inch (240mm) external diameter. H and OH Cowls are designed to prevent foreign bodies entering chimneys, to increase updraught and to prevent rain ingress.

They are available in 4 finishes which are illustrated below and are designed to be secured to the Chimney Pot with 2 S/Steel worm drive locking bands.

• Tested to and complies with BS EN 16475-7:2016
• Promote positive updraught
• Fits most conventional chimney pots
• Made from corrosion proof stainless steel
• Use on chimneys in downdraught situations
• Durable construction, quick and simple to install
• Prevents rain ingress.

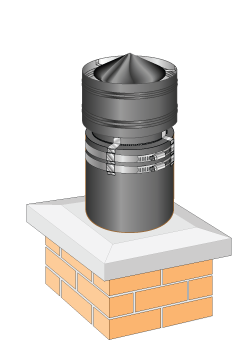

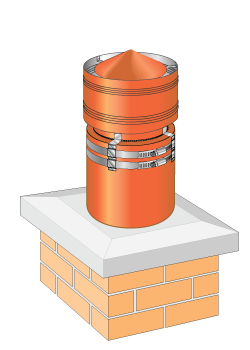

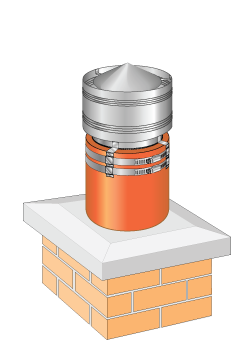

Made from stainless steel, the Smart Storm Cowl is designed to fit an 8" (200mm) internal diameter chimney pot or extended chimney liner, the external diameter of which would normally be about 9^1/2" (240mm).

Storm Cowl helps to prevent the entry of debris and bird nesting materials. It is very easily fitted with 2 S/Steel worm drive locking bands and the skirt and dome design assists in redirecting wind movement. Storm cowl is available in 4 finishes which are illustrated below.

• Tested to and complies with BS EN 16475-7:2016
• Made from corrosion proof stainless steel
• Designed to fit standard 8" chimney pot
• Helps to prevent the entry of debris and bird nesting materials
• Easy to fit with 2 stainless steel worm drive locking bands
• The skirt and dome design assists in redirecting wind movement so contributing to the prevention of down draughts.

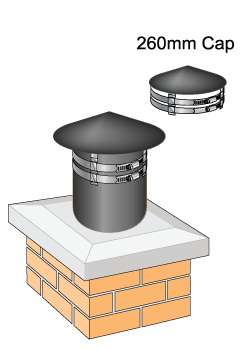

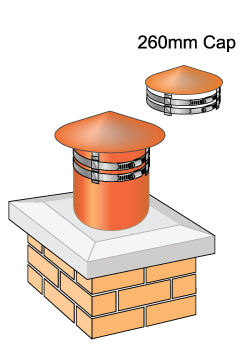

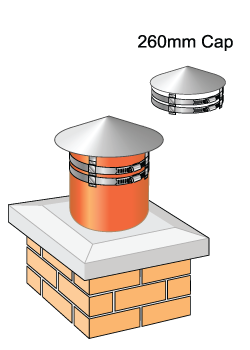

Smart Capping is easily secured to the top of a masonry chimney which is no longer to be used. It is designed so that a narrow gap is left between the cap and the top of the chimney pot or liner to enable trickle ventilation of the flue which is necessary to prevent residual moisture in the stack creating damp problems. The gap is sufficiently narrow to prevent the entry of bats and small birds.

The 260mm Capping Cowl was designed to be used on chimneys with multiple flues, where the tight space will make it impossible to use a 350mm standard cover.

• Tested to and complies with BS EN 16475-7:2016
• Available in 2 cap sizes: 350mm and 260mm
• Made from corrosion proof stainless steel
• Fits most standard chimney pot diameters
• Prevents foreign bodies from entering chimneys
• Easy to fit with 2 stainless steel worm drive locking bands
• Reduces heat loss by up to 80%
• Eliminates rain ingress.
